TOXFREE® YMz1Kf provides safety for people and electronic equipment
The cable TOXFREE® YMz1Kf is an ultra-flexible LSZH power cable. It has the highest level of the European CPR regulation to ensure maximum possible safety in case of fire. It is therefore strongly recommended for use in projects in locations likely to concentrate large numbers of people.

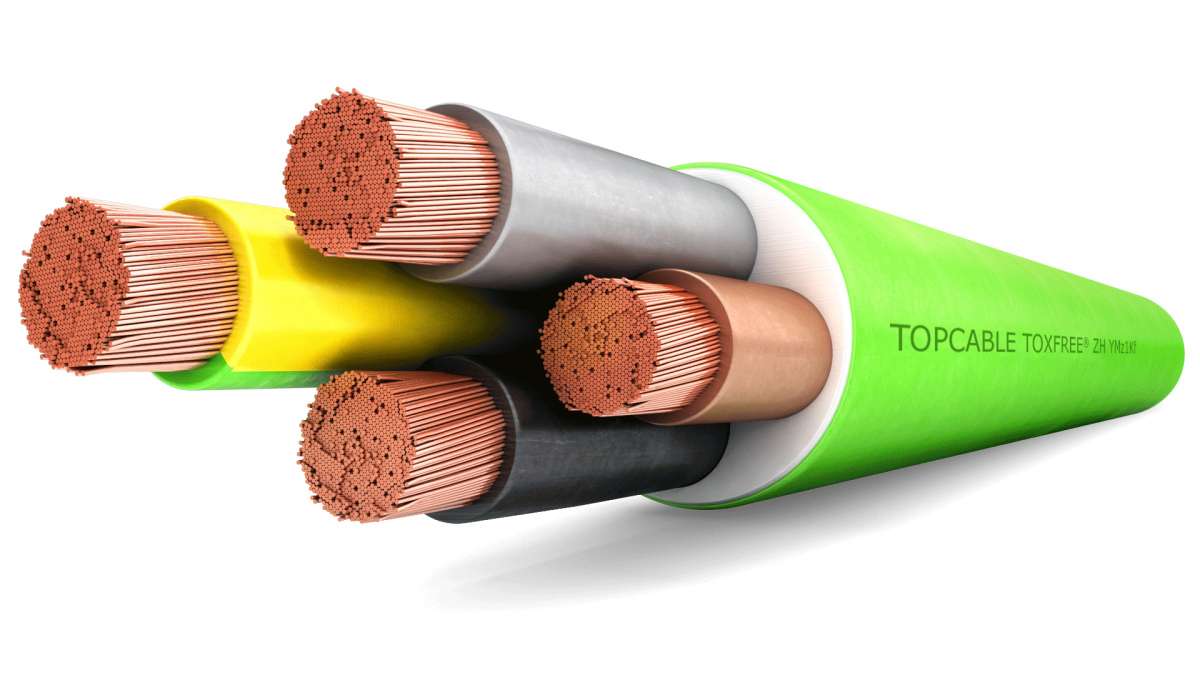

DESIGN:
1 – Flexible electrolytic annealed copper conductor (class 5).
2 – Flexible cross-linked polyethylene insulation (XLPE).
3 – Flexible halogen-free flame-retardant polyolefin outer sheath, with low emission of smoke and corrosive gases in case of fire.
DESIGNED TO REDUCE INSTALLATION TIME
TOXFREE® YMz1Kf is an ultra-flexible power cable designed to meet the most demanding industrial requirements. Its great flexibility is great news for installers, who will find it simplifies their work when installing the cable in complex layouts.
This ease of installation not only influences the work of the technician carrying out the work, the flexibility of the cable also minimises the costs of the project, as the flexibility of the cable will save a lot of time spent on the project and consequently reduce the cost of labour.
Also noteworthy is its ability to not crack under vibration due to its flexible copper conductors.
TECHNICAL CHARACTERISTICS
TOXFREE® YMz1Kf cable is highly flexible and has good resistance to maximum and minimum temperatures, impact, chemical attack and ultraviolet rays. A flexible cable such as this offers greater ease of handling and laying, as well as better adaptability to winding routes when laying. In addition, its easy-stripping jacket can save up to 30% in labour costs.
Maximum fire performance CPR (B2ca, Cca)
Flexible cable
AD8 (submersion)
UV resistant
INSTALLATIONS WHERE IT IS ADVISABLE TO USE THIS CABLE
TOXFREE® ZH YMz1Kf cable, manufactured by Top Cable, is especially recommended in demanding circuits thanks to its flexibility. It is also very suitable for in public places such as: hospitals, airports, tunnels, subways, etc. as well as in offices, production plants, laboratories, etc.
- Public places.
- Industrial use.
- Outdoor lighting.
- Data centres.
It can be installed in the open air, in conduit and/or buried.
WHERE CAN I BUY THE TOXFREE® YMz1Kf CABLE?

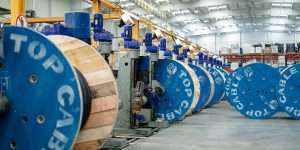

To buy this cable on reels of various sizes, please see our sales conditions for Electrical Wholesalers and Distributors here. We can also put you in touch with your nearest Top Cable distributor.
Some of the most common electrical cable sections in immediate stock are as follows:
| Cable | Conductor cross-section (mm2) | Colour of conductor |
| TOXFREE® YMz1Kf | 1 x 2,5 | Green / Black |
| TOXFREE® YMz1Kf | 1 x 4 | Green / Black |
| TOXFREE® YMz1Kf | 1 x 6 | Green / Black |
| TOXFREE® YMz1Kf | 3G 1,5 | Green / Black |
| TOXFREE® YMz1Kf | 3G 2,5 | Green / Black |
| TOXFREE® YMz1Kf | 3G 4 | Green / Black |
| TOXFREE® YMz1Kf | 4G 1,5 | Green / Black |
| TOXFREE® YMz1Kf | 4G 2,5 | Green / Black |
If you need to consult additional technical aspects of this cable, such as its maximum admissible current or voltage drop, please contact us.
TOXFREE® ZH YMz1Kf
Flexible LSZH power cable
FREQUENTLY ASKED QUESTIONS (FAQ) ABOUT THE TOXFREE® YMz1Kf CABLE
What is a power cable?
Power cables are designed for permanent use and consist of one or more electrical conductors with a sheath. It is available in various constructions, materials and ratings for different applications.
What is the difference between a portable cable and a power cable?
A portable cable is designed for temporary power supply, whereas power cables are usually installed in permanent applications.
Which power cables are most commonly used?
Class 5 (flexible) copper power cable, such as TOXFREE® YMz1Kf. This type of cable is suitable for the transmission of electrical power in all types of industrial low-voltage connections, in urban networks, building installations, etc. The power cables consist of a copper conductor, a protective insulation and an outer sheath.
What other features does the TOXFREE® YMz1Kflex cable have?
In addition to all the characteristics explained so far, we can also highlight the following:
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250°C (maximum 5 s).
Minimum installation and handling temperature: 0°C (on the cable surface).
Minimun service temperature: -40ºC (fixed and protected installations).
Impact resistance: AG2 Medium severity.
Minimum bending radius: 5x cable diameter.
What are the fire characteristics of TOXFREE® YMz1Kf cable?
Flame non-propagation according to EN-IEC 60332-1.
Fire non-propagation according to EN-IEC 60332-3 and EN 50399.
Reaction to fire CPR: B2ca-s1a, d1, a1 or Cca-s1a, d1,a1 according to EN 50575 (see cross-section).
Halogen-free according to EN-IEC 60754-1.
Low emission of corrosive gases EN-IEC 60754-2.
Low smoke emission according to EN-IEC 61034.
Light transmittance > 80%.
What does CPR B2ca s1a, d1, a1 mean? What does CPR Cca s1b d1 a1 mean? What is CPR in a cable?
Here you can read more about the European Construction Products Regulation (CPR) and its fire performance classification system for electrical cables.
The CPR classification of TOP CABLE TOXFREE® YMz1Kf cable is B2ca-s1a,d1,a1 / Cca-s1a,d1,a1. In several European countries, the installation of CPR Cca-s1a,d1,a1 cables is mandatory in public places such as: hospitals, schools, museums, airports, bus stations and shops in general.
What certifications does the cable meet?
Where can I find the TOXFREE® ZH YMz1Kf cable technical specification in PDF format?
Here is the PDF of the summary technical specification of the TOXFREE® ZH YMz1Kf cable. If you need to consult additional technical aspects of this cable, such as its maximum admissible current or voltage drop, please contact us.
