- Digital terrestrial television.
- Analogical satellite.
- Digital.
Electrical performance
Based on: EN 50117-1.
Standard & Approvals
CE RoHSConstruction Product Regulation
Eca
Thermal performance
Maximum service temperature: 70ºC.
Maximum short-circuit temperature: -15ºC (mobile service).
Other
Meter by meter marking.
Installation conditions
Open Air.
On tray.
In conduit.
Packaging
Available in 100m rolls.

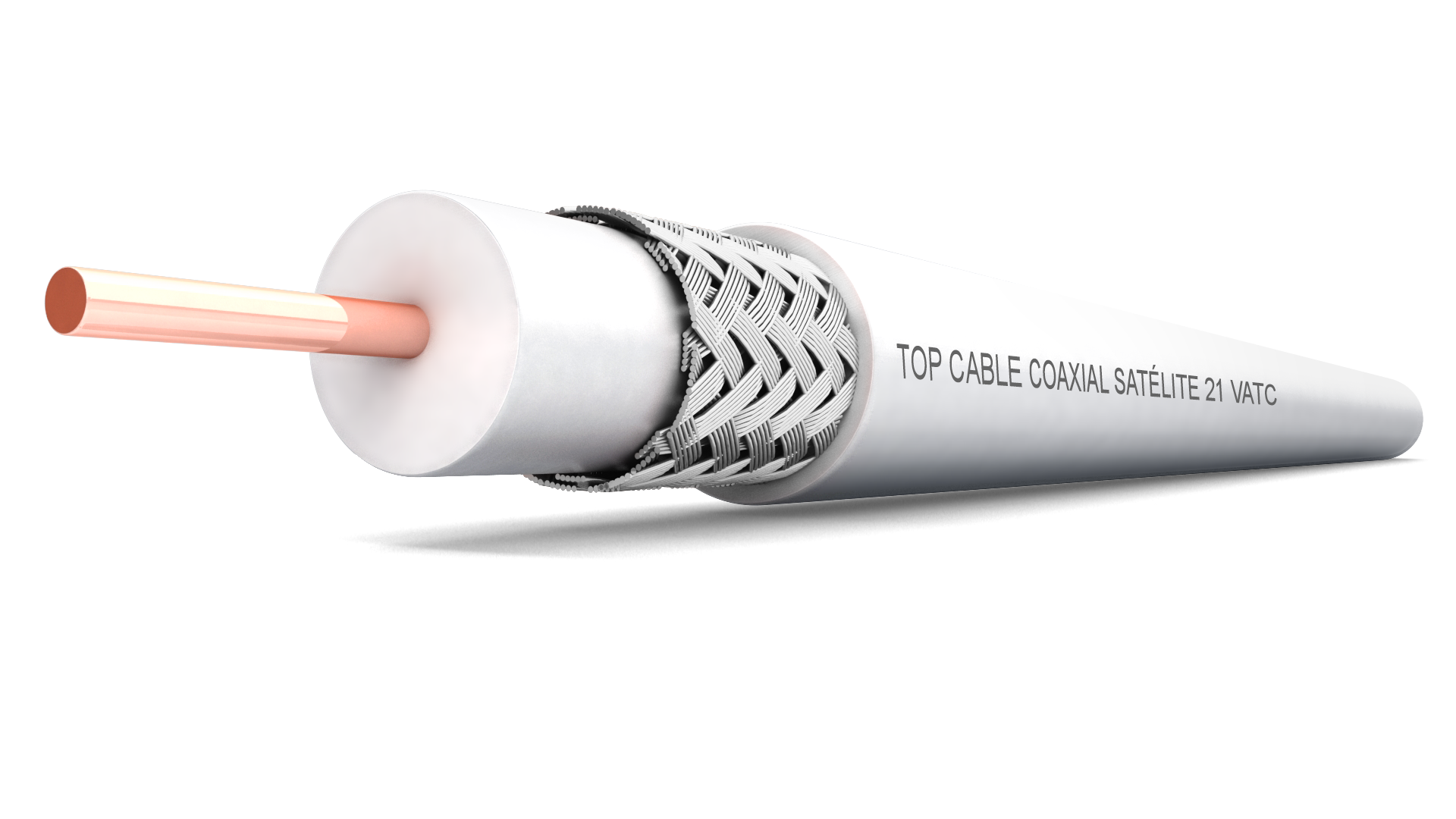

Conductor
Electrolytic copper, class 1, based on EN 60228 and IEC 60228.
Insulation
Polyethylene HDPE according to UNE-EN 50290-2-23 .
Screen
Copper or aluminum screen and aluminum-polyester tape with overlapping copper braid, ensuring 100% screening coverage.
Outer sheath
PVC, white colour.
CE & RoHS
EN 50117-1
Eca
In conduit, on tray or open air
Meter by meter marking
Available in 100m rolls
THERMAL PERFORMANCE
Maximum service temperature: 70ºC.
Minimum service temperature: -15ºC
APPROVALS
CE
RoHS
BASED ON
CONSTRUCTION PRODUCT REGULATION
Eca
INSTALLATION CONDITIONS
In conduit.
On tray
Open Air.
OTHERS
Meter by meter marking.
Polyethylene HDPE according to UNE-EN 50290-2-23 .
