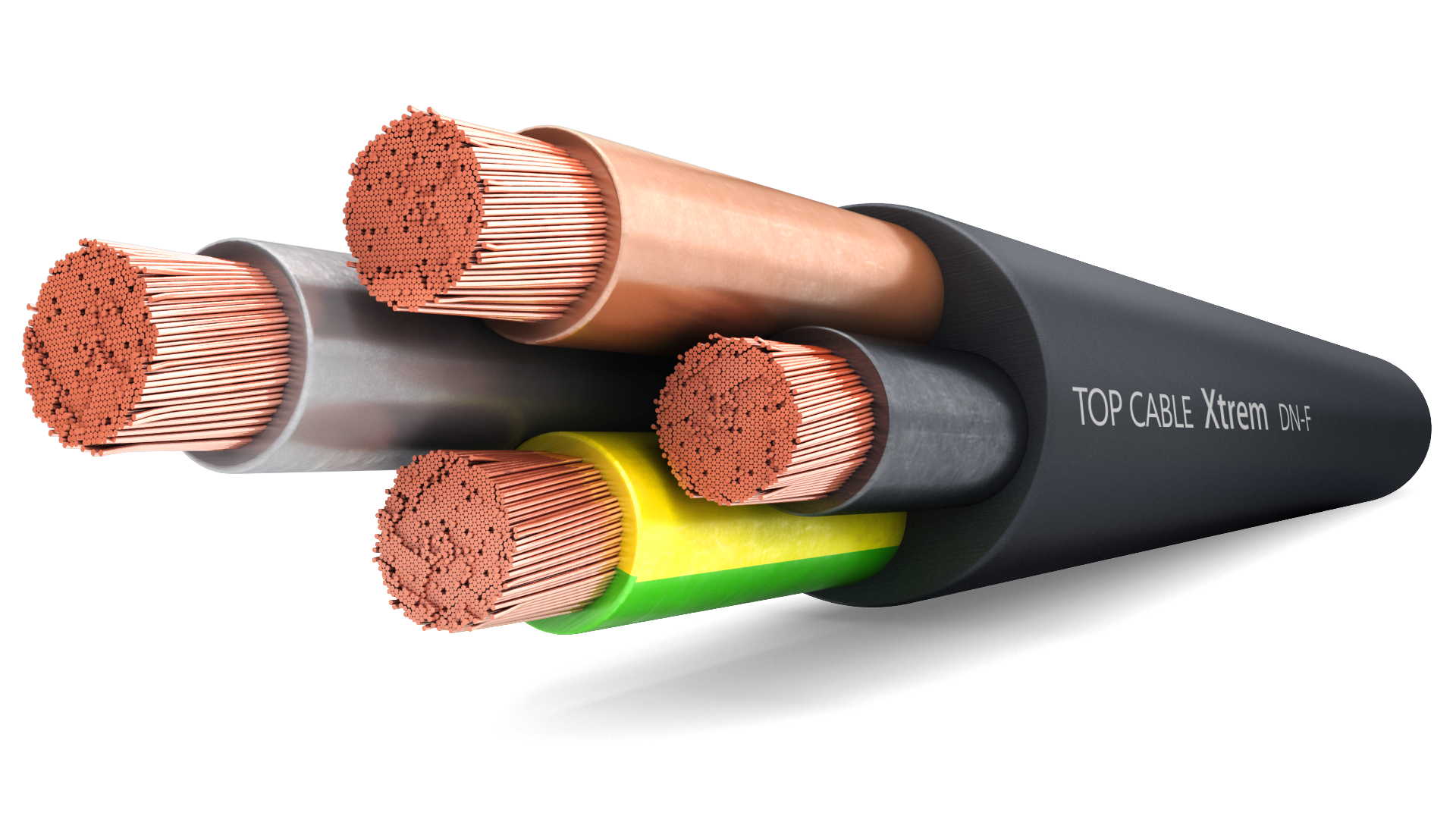

XTREM® DN-F is a flexible cable for marine mobile heavy duty, for installations on ships and vessels and for submerged pumps. Suitable for permanent total submerged installations (AD8) and drinking water wells, and has few international approvals for drinking water safety.
Electrical performance
LOW VOLTAGE 0,6/1kV; 1,8/3Kv
Standard
UNE 21150
Approvals
CE / RoHS
Construction Products Regulation (CPR)
Eca
Thermal performance
Maximum service temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations) and -25ºC (mobile use)
Fire performance
Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.
Reaction to fire CPR: Eca , according to EN 50575.
Mechanical performance
Minimum bending radius: 3 x cable diameter < 12 mm.
4 x cable diameter ≥ 12 mm.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excellent.
Water performance
Water resistance: AD8 Submersion.
Submersible pumps.
In drinkable water according to AS/NZS 4020.
Deep wells.
Drinkable water.
AWQC.Other
Meter by meter marking.
Installation conditions
Open Air.
Submersibles pumps cable.Applications
Submarine installation
Shipboard installation
Water submarine pumps
Packaging
Available in rolls of 100 m and drums.
Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Rubber (type EPR)
The standard identification according to HD 308 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
3x Brown + Black + Grey4 G Brown + Black + Grey + Yellow/green
4x Brown + Black + Grey + Blue5 G Brown + Negro + Grey + Blue + Yellow/green
6 or more Black numbered + Green/Yelow Outer sheath Flexible rubber. Black color
Flame non-propagation based on EN 60332-1 and IEC 60332-1. Reaction to fire CPR: Eca , according to EN 50575.
Marine use
Chemical & Oil resistance: Excellent.
Eca
Submersible pumps cable
IEC 60332-1 / IEC 60332-3
CHEMICAL PERFORMANCE
Chemical & Oil resistance: Excellent.
Grease & mineral oils resistance: Excelent.
FIRE PERFORMANCE
Flame non-propagation based on EN 60332-1 and IEC 60332-1
MECHANICAL PERFORMANCE
Impact resistance: AG2 Medium severity.
ELECTRICAL PERFORMANCE
LOW VOLTAGE 0,6/1kV
APPROVALS
CE
RoHS
CONSTRUCTION PRODUCT REGULATION
Eca
International norm
IEC 60332-1
APPLICATIONS
Marine use
OTHERS
Meter by meter marking.
INSTALLATION CONDITIONS
Open Air.
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Yellow/green
3x Brown + Black + Grey
4 G Brown + Black + Grey + Yellow/green
4x Brown + Black + Grey + Blue
5 G Brown + Negro + Grey + Blue + Yellow/green
6 or more Black numbered + Green/Yelow
