Toxfree® ZH Outdoor H07Z1-K (AS), flexible and halogen free earthing connections
The design of the Toxfree® ZH Outdoor H07Z1-K (AS) Cu/Sn cable makes it highly resistant to corrosion and ultraviolet (UV) degradation. This resistance is a very positive aspect for use in outdoor photovoltaic installations. In addition, it is a halogen-free cable specially designed for grounding connections.

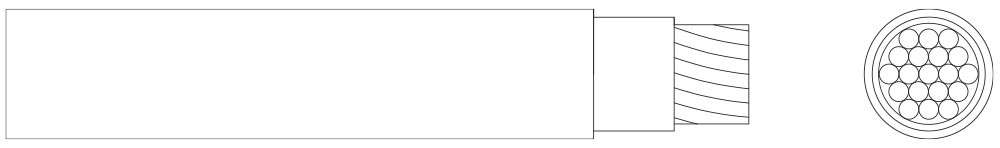

DESIGN:
1 – Electrolytic annealed tinned copper conductor (class 5).
2 – UV resistant polyolefin insulation.
TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn, A WIRING CABLE SUITABLE FOR OUTDOOR INSTALLATIONS
Cables for photovoltaic installations need to have specific characteristics to be able to withstand inclement weather and extreme temperatures without affecting their performance at any time. Thus, the TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable is highly resistant to degradation caused by ultraviolet rays (UV), according to the EN 50618 standard, and also to the effects of corrosion.
It is a halogen-free cable which, among its features, also stands out for its capacity to avoid galvanic couple when connecting metals of different potential. Thus, it is possible to avoid a significant effect on the metal with the greatest negative potential, oxidation. In addition to the direct effect on the cable, eliminating this problem extends the time of full performance of the photovoltaic installation.
MAXIMUM CPR CERTIFICATION
TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable also offers the highest fire safety. It has the highest CPR (Construction Products Regulation) certificate, B2ca-s1a,d1,a1, preventing the spread of fire in case of fire.
High temperatures are a very threatening factor for the maintenance of photovoltaic panels. There are many cases of solar panel fires caused by the deterioration of the installation. In these cases, if a cable without adequate CPR performance has been used, the fire can spread rapidly, damaging the entire installation. With a cable such as TOXFREE® ZH OUTDOOR H07Z1-K this risk is completely avoided thanks to its fire characteristics.
TECHNICAL CHARACTERISTICS
This cable has the following characteristics:
Maximum fire performance CPR (B2ca, Cca)
Flexible cable
Halogen free
UV resistant
INSTALLATIONS WHERE IT IS ADVISABLE TO USE ZH OUTDOOR CABLE H07Z1-K
The Toxfree® ZH Outdoor H07Z1-K cable is specially designed for ground connections in outdoor installations. It is an optimal cable for panel structures in solar farms, guaranteeing good performance and optimised service life.
WHERE TO BUY TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn CABLE?
To buy TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable on reels of various sizes, please see our sales conditions for Electrical Wholesalers and Distributors here. We can also put you in touch with your nearest Top Cable distributor.
Some of the most common sections of Toxfree® ZH Outdoor H07Z1-K (AS) Cu/Sn electrical cable in immediate stock are as follows:
| Cable | Conductor cross-section (mm2) |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 4 |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 10 |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 16 |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 50 |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 120 |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 185 |
| TOXFREE® ZH OUTDOOR H07Z1-K (AS) | 1 x 240 |

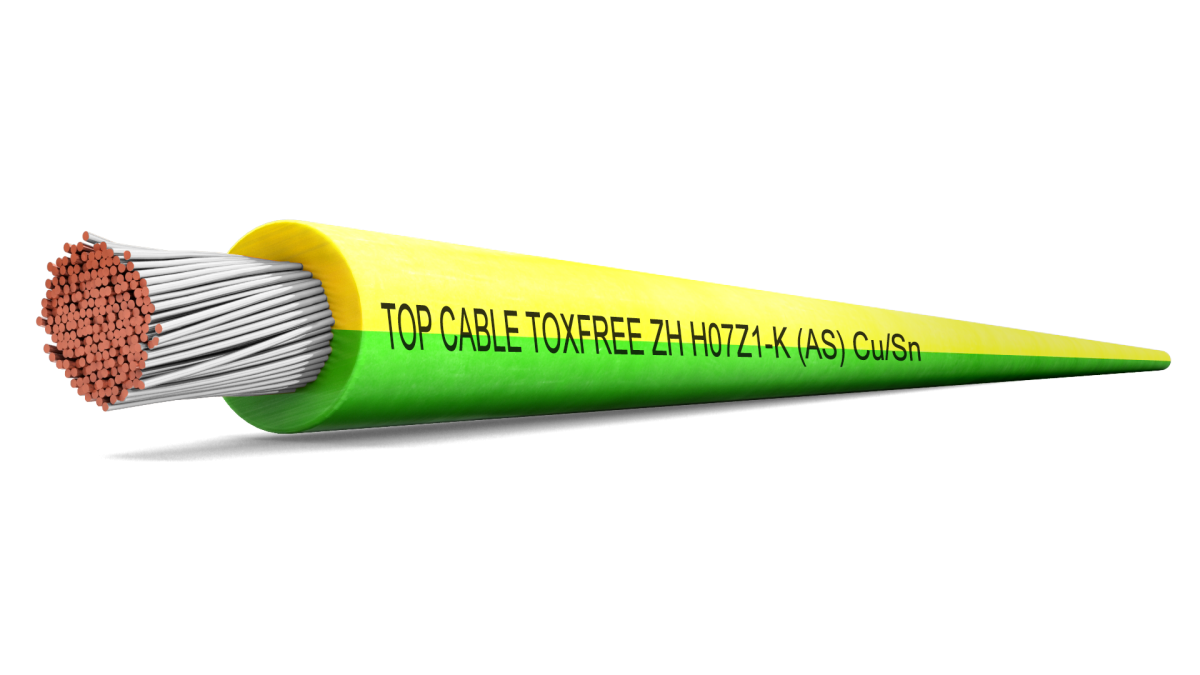

TOXFREE® ZH OUTDOOR H07Z1-K
Solar grounding cable, with tinned copper conductor
FREQUENTLY ASKED QUESTIONS (FAQ) ABOUT TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn CABLE
What are the fire characteristics of TOXFREE® ZH OUTDOOR H07Z1-K (AS) Cu/Sn cable?
Flame non-propagation according to UNE-EN 60332-1 and IEC 60332-1.
Fire non-propagation according to UNE-EN 60332-3 and IEC 60332-3.
Reaction to fire CPR: B2ca s1a, d1, a1 , according to EN 50575.
LSZH (Low Smoke Zero Halogen) according to UNE-EN 60754-1 / IEC 60754-1.
Low corrosive gases emission according to UNE-EN 60754-2 / IEC 60754-2.
Low smoke emission according to UNE-EN 61034 / IEC 61034: Light transmittance > 80%
For more information on the fire tests that electrical cables are subjected to, see this video from the Top Cable YouTube channel.
Why is it important that it is halogen-free and classified according to CPR as B2ca?
The EN 50618 standard requires solar cables to have a low smoke, corrosive gas and halogen-free (LSZH) sheath in case of fire.
In addition, in Europe, according to CPR regulations, the minimum reaction to fire class required for cables must be Cca. TOXFREE® ZH OUTDOOR H07Z1-K cable, manufactured by Top Cable, has a higher level, B2ca.
Where can I find the TOXFREE® ZH OUTDOOR H07Z1-K (AS) Co/Sn cable technical specification in PDF format?
Here is the PDF of the cable’s summary technical specification. If you need to consult additional technical aspects of this cable, such as its maximum admissible current or voltage drop, please contact us.
What is the price of TOXFREE® ZH OUTDOOR H07Z1-K (AS) Co/Sn cable?
At Top Cable you will get the highest quality cables, with the best prices and the best service for reels of various sizes. Contact us.
