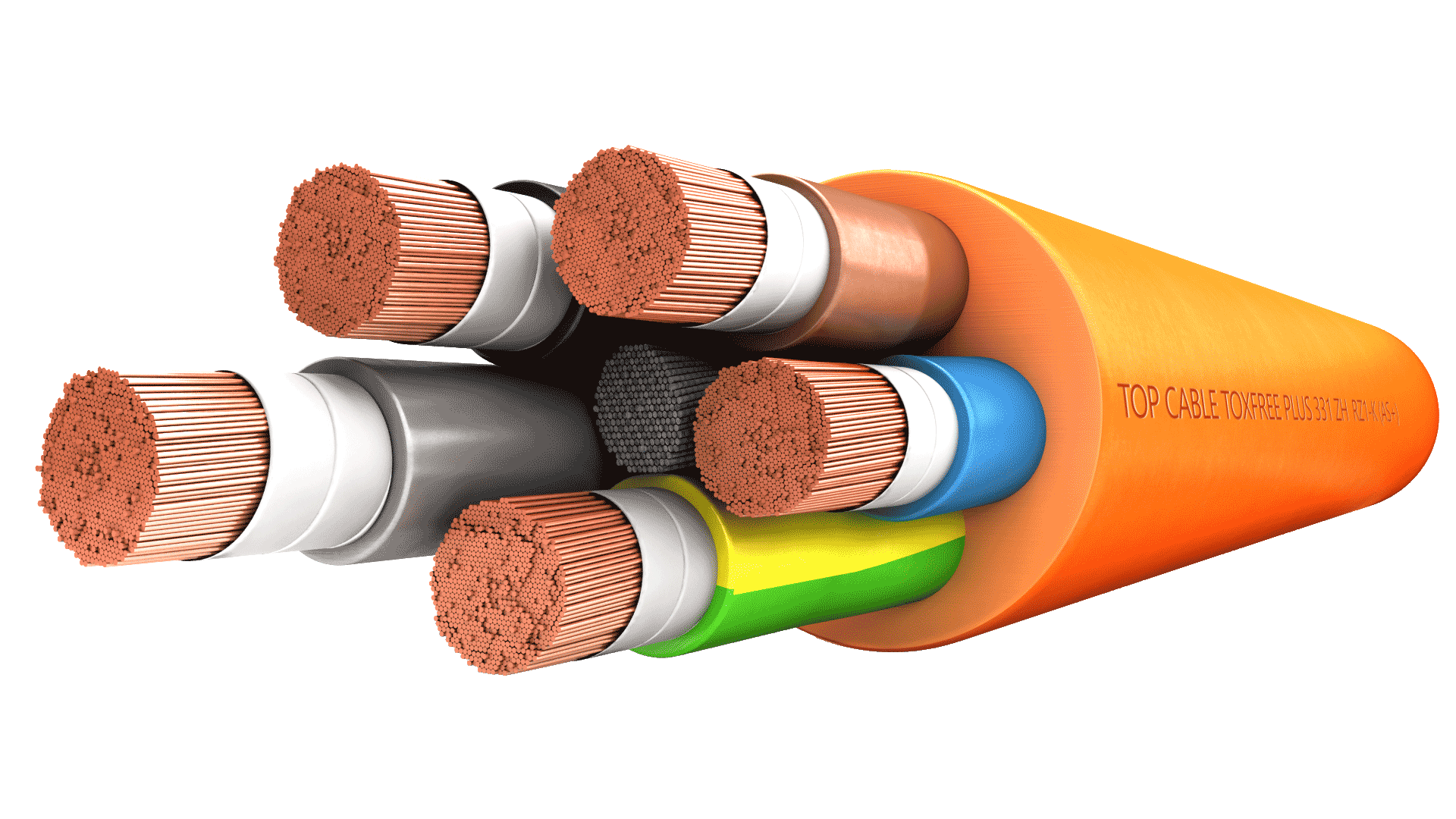

TOXFREE Plus 331 ZH RZ1-K (AS+) is a fire resistant cable, specially designed to ensure the power supply to emergency circuits in the event of fire. During a fire you need critical circuits to work for life safety (signaling lights, fume extractors, acustic alarms, water pumps, etc) and a secure plant shutdown. For this reason, its use is highly recommended in public places such as: hospitals, tunnels, offices, production plants, laboratories, hotels, etc.
Electrical performance
LOW VOLTAGE 0,6/1kV
Standard
IEC 60502-1
Approvals
CE/ RoHS
CPR Construction Products Regulations B2ca-s1a, d1, a1 (according to cross-section) or Cca-s1b,d1,a1 (according to cross-section).Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Mechanical performance
Minimum bending radius: x5 cable diameter.
Impact resistance: AG2 Medium severity.
Chemical performance
Chemical & Oil resistance: Acceptable.
Water performance
Water resistance: AD5 Jets.
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3, IEC 60332-3 and EN 50399.
Fire resistant: (PH120) mínimum 120 minutes at 840ºC: Based on EN 50200 and IEC 60331-2 for Ø cable ≤ 20 mm.
Based on EN 50362 and IEC 60331-1 for Ø cable > 20 mm. 180’ at 950ºC (cat C) category C,W & Z based on BS6387.
Fire resistant 180’ at 950ºC (cat C) category C,W & Z based on BS6387 (300/500V).
LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.
Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Other
Meter by meter marking.
Installation conditions
Open Air.
Buried.
In conduit.
Applications
Industrial use.
Emergency circuits
Public places.
Conductor
Electrolytic annealed copper, class 5 (flexible), based on EN 60228 and IEC 60228.
Insulation
Mica tape + Cross-linked polyethylene type DIX-3 according to HD 603.
The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
2x Blue + Brown
3 x Blue + Brown + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Green/yellow + Blue
Outer sheath
Low Smoke Halogen Free (LSHF) polyolefin. Orange color, non-toxic, fire retardant and fire resistant.
LOW VOLTAGE 0,6/1kV
Flame non-propagation based on EN 60332-1 and IEC 60332-1
Maximum service temperature: 90ºC.
industrial use / Public places / Emergency circuits
IEC 60502-1
ENVIRONMENTAL PERFORMANCE
Chemical & Oil resistance: Acceptable.
ELECTRICAL PERFORMANCE
LOW VOLTAGE 0,6/1kV
FIRE PERFORMANCE
Fire resistant 180’ at 950ºC (cat C) category C,W & Z based on BS6387 (300/500V).
Fire resistant: (PH120) mínimum 120 minutes at 840 ºC: Based on EN 50200 and IEC 60331-2 for Ø cable < 20 mm. Based on EN 50362 and IEC 60331-1 for Ø cable > 20 mm. 180’ at 950ºC (cat C) category C,W & Z based on BS6387.
Flame non-propagation based on EN 60332-1 and IEC 60332-1
MECHANICAL PERFORMANCE
Impact resistance: AG2 Medium severity.
Minimum bending radius: x5 cable diameter.
THERMAL PERFORMANCE
Maximum service temperature: 90ºC.
Maximum short-circuit
temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations)
WATER PERFORMANCE
Water resistance: AD5 Jets.
APPLICATIONS
Emergency circuits
Industrial use.
Public places.
APPROVALS
CE
RoHS
CONSTRUCTION PRODUCT REGULATION
B2ca s1a, d1, a1
BASED ON
IEC 60502-1 / UNE 211025
INSTALLATION CONDITIONS
Buried.
In conduit.
Open Air.
International norm
IEC 60502-1
OTHERS
Meter by meter marking.
National norm / European:
UNE-EN 60332-1 / UNE-EN 60332-3
