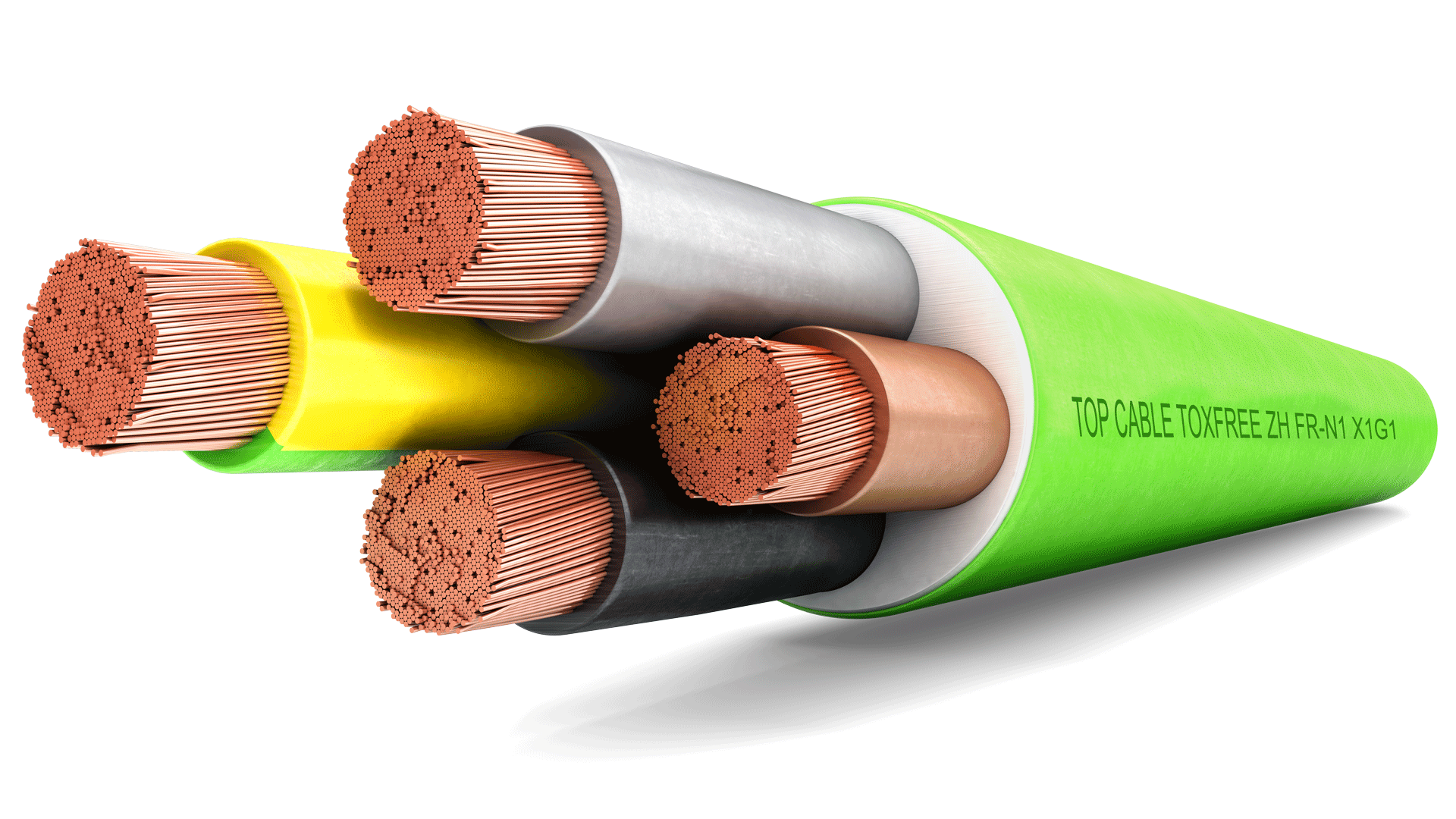

TOXFREE ZH FR-N1 X1G1 Flex

Flexible LSZH power cable, for public places.

Toxfree® ZH N1 X1G1 Flex is a LSHF safety cable. In the event of fire, it does not emit toxic gases, nor does it give off corrosive gases, avoiding any possible damage to people or electronic equipment. For these reasons it is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping centers, offices, laboratories, etc.

TOXFREE ZH FR-N1 X1G1 Flex cable performance

Electrical performance

LOW VOLTAGE 0,6/1 kV

Standard

NF C 32-323

Approvals

CE

UKCA

RoHS

AENOR KEMA-KEUR SEC

Construction Product Regulation

B2ca -s1a, d1, a1 (according to cross-section) or

Cca -s1a, d1, a1 (according to cross-section)

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations).

Minimum installation and handling temperature: -0°C

Fire performance

Flame non-propagation according to EN 60332-1, IEC 60332-1.

Fire non-propagation according to EN 60332-3, IEC 60332-3 and EN 50399.

LSZF (Low Smoke Zero Halogen) according to EN 60754-1 and IEC 60754-1.

Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.

Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.

Reaction to fire CPR B2ca -s1a, d1, a1 or Cca -s1a, d1, a1 according to 50575.

Mechanical performance

Minimum bending radius: x5 cable diameter.

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Acceptable.

UV resistant according to EN 50618.

Water performance

Water resistance: AD8 Submersion.

Other

Meter by meter marking.

Installation conditions

Open air. Buried.

In conduit.

Applications

Industrial use.

Public places.

TOXFREE ZH FR-N1 X1G1 cable design

Conductor

Electrolytic annealed copper, class 5 (flexible) according to EN 60228 and IEC 60228.

Insulation

Cross-linked polyethylene type XLPE according to IEC 60502-1 and type DIX-3 according to HD 603.

The standard identification of insulated conductors according to HD 308is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Green/Yellow

3 x Brown + Black + Grey

3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)

4 G Brown + Black + Grey + Green/Yellow

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Green/Yellow

Outer sheath

Low smoke halogen free polyolefin, type ST8 according to IEC 60502-1.

Green colour.

  • LOW VOLTAGE 0,6/1kV

  • Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

  • AENOR

  • B2ca s1a, d1, a1 - Cca s1a, d1,a1

  • Minimum bending radius: x5 cable diameter.

  • NF C 32-323

Cable Specifications

ENVIRONMENTAL PERFORMANCE

  • Chemical & Oil resistance: Acceptable.

ELECTRICAL PERFORMANCE

  • LOW VOLTAGE 0,6/1kV

FIRE PERFORMANCE

  • Fire non-propagation based on UNE-EN 60332-3 and IEC 60332-3.

  • Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

  • Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.

  • Low smoke emission according to EN 61034 and IEC 61034: Light transmittance > 80%.

  • LSHF (Low Smoke Halogen Free) based on UNE-EN 60754-1 and IEC 60754-1.

MECHANICAL PERFORMANCE

  • Impact resistance: AG2 Medium severity.

  • Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

  • Maximum service temperature: 90ºC.

  • Maximum short-circuit
    temperature: 250ºC (max. 5 s).

  • Minimum service temperature: -40ºC (fixed and protected installations)

  • Minimum service temperature: 0ºC.

WATER PERFORMANCE

  • Water resistance: AD5 Jets.

Other properties

APPROVALS

  • AENOR

  • CE

  • KEMA KEUR

  • NF-USE

  • RoHS

  • UKCA

APPLICATIONS

  • Industrial use.

  • Public places.

CONSTRUCTION PRODUCT REGULATION

  • B2ca s1a, d1, a1 & Cca s1a, d1, a1

BASED ON

  • EN 60228 / IEC 60228

INSTALLATION CONDITIONS

  • Buried.

  • In conduit.

  • Open Air.

OTHERS

  • Meter by meter marking.

Technology

  • 1. Conductor
    • Electrolytic copper, class 1 (FR-N1 X1G1-U) or class 2 (FR-N1 X1G1-R), based on EN 60228 and IEC 60228.
  • 2. Insulation
    • Cross-linked polyethylene (XLPE) according to IEC 60502-1 and type DIX-3 according to HD 603.

    • The standard identification of insulated conductors according to HD 308is the following:

      • 1x  Natural

      • 2x  Blue + Brown

      • 3G Blue + Brown + Green/yellow

      • 3x Brown + Black + Grey + Blue (reduced cross-section)

      • 4G Brown + Black + Grey + Green/yellow

      • 4x Brown + Black + Grey + Blue

      • 5G Brown + Black + Grey + Blue + Green/yellow

  • 3. Outer sheath
    • Low Smoke Zero Halogen (LSZH) polyolefin. Green color.
