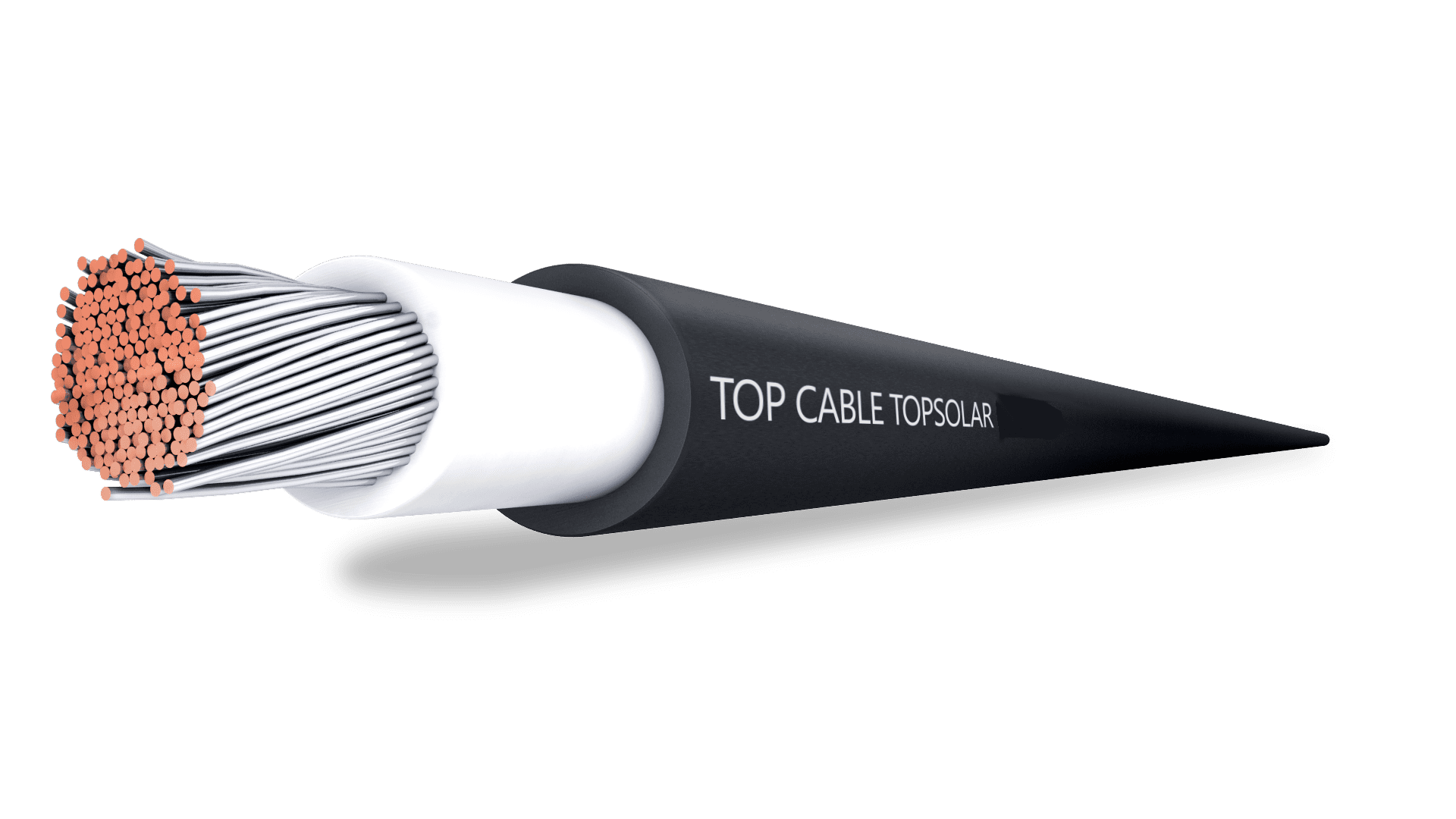

TOPSOLAR PV DUAL H1Z2Z2-K

TÜV and UL solar PV cable.

Topsolar® H1Z2Z2-K PV Dual cable is suitable for photovoltaic installations. Highly flexible cable, suitable for wet, damp and humid locations. Specially indicated for the connection between photovoltaic panels, and from the panels to the inverter. It is a dual certified cable as requested by the leading global manufacturers of solar panels and junction boxes.

TOPSOLAR PV DUAL H1Z2Z2-K cable performance

Electrical performance

Low voltage 1,5/1,5 ( 1,8) kV DC · 1,0/1,0 kV AC. Standard
EN 50618 / IEC 62930 / UTE C 32-502 .

Approvals

AENOR / TÜV / RETIE / CE / RoHS

CPR Construction Products Regulation

Cca -s1b,d2,a1

Thermal performance

Maximum conductor temperature: 90ºC (120ºC during 20.000h).

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protect installations).

Fire performance

Flame non-propagation based on EN 60332-1-2 and IEC 60332-1-2.

Fire non-propagation according to EN 50399.

LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754-1.

Low smoke emission based on EN 61034 and IEC 61034: Light transmittance > 60%

Low corrosive gases emission based on EN  60754-2 and IEC 60754-2.

Reaction to fire CPR: Cca -s1b,d2,a1 according to EN 50575.

Mechanical performance

Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter ≤ 12 mm) 6x cable diameter (cable diameter > 12 mm).

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Excellent.

Grease & mineral oils resistance: Excellent.

UV Resistant according to EN 50618 and IEC 62930.
Ozone resistant based on EN 50618.

Water performance

Water presence: AD8 submerged.

Estimated Lifetime

Estimated lifetime 30 years based on EN 60216-2.

Other

Meter by meter marking.

Installation conditions

Open Air.

Buried.

In conduit.

Applications

Solar PV installations.

Packaging

Available in rolls (lengths of 100 m) and reels.

TOPSOLAR PV DUAL H1Z2Z2-K cable design

Conductor

Class 5 (flexible) tinned copper,  based on EN 60228 and IEC 60228.

Insulation

Low smoke halogen free (LSHF) rubber according to table B1 in Annex B of EN 50618 and IEC 62930.

Outer sheath

Low smoke halogen free (LSHF) rubber according to table B1 in Annex B of EN 50618 and IEC 62930. Red or black color.

  • LOW VOLTAGE 1,5/1,5kV · ( 1,8) kV DC

  • Flame non-propagation according to EN 60332-1-2 / IEC 60332-1- 2.

  • Maximum conductor temperature: 90°C (120°C during 20.000 h).

  • Solar PV installations.

  • EN 50618/ IEC 62930 / UTE C 32-502

  • Meter by meter marking.

Cable Specifications

CHEMICAL PERFORMANCE

  • Chemical & Oil resistance: Excellent.

  • Grease & mineral oils resistance: Excelente

  • UV Resistant based on EN 50618.

ELECTRICAL PERFORMANCE

  • LOW VOLTAGE 1,5/1,5kV · ( 1,8) kV DC

  • Low voltage: 1,0/1,0 kV AC.

FIRE PERFORMANCE

  • Fire non-propagation based on EN 60332-3 / IEC 60332-3 / EN 50399.

  • Flame non-propagation according to EN 60332-1-2 / IEC 60332-1- 2.

  • Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.

  • Low smoke emission according to EN 61034 and IEC 61034.: Light transmittance > 60%
  • Low smoke halogen free according to IEC 60754-1
  • Reaction to fire CPR: Cca-s1b, d2, a1 according to EN 50575.

MECHANICAL PERFORMANCE

  • Impact resistance: AG2 Medium severity.

  • Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

  • Maximum conductor temperature: 90°C (120°C during 20.000 h).

  • Maximum short-circuit
    temperature: 250ºC (max. 5 s).

  • Minimum service temperature: -40ºC.

WATER PERFORMANCE

  • Water resistance: AD8 Submersion.

Other properties

APPROVALS

  • AENOR

  • CE

  • RETIE

  • RoHS

  • TÜV

APPLICATIONS

  • Solar PV installations.

PACKAGING

  • Available in rolls (lengths of 50 and 100 m) and drums.

BASED ON

  • EN 50618/ IEC 62930 / UTE C 32-502

INSTALLATION CONDITIONS

  • Buried.

  • In conduit.

  • Open Air.

CONSTRUCTION PRODUCT REGULATION

  • Cca s1b, d2, a1

International norm

  • IEC 60332-1 / IEC 60754-1 / IEC 60754-2 / IEC 61034

OTHERS

  • Meter by meter marking.

Technology

  • 1. Conductor
    • Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.
  • 2. Insulation

    • Low smoke halogen free (LSHF) rubber according to table B1 in Annex B of EN 50618 and IEC 62930.

  • 3. Outer sheath
    • Low smoke halogen free (LSHF) rubber according to table B1 in Annex B of EN 50618 and IEC 62930. Red or black color.
