Toxfree® RZ1-K, LSZH power cable with maximum CPR fire protection
TOXFREE® RZ1-K 0.6/1kV is a halogen-free flexible power cable with low smoke emission and no fire propagation. Due to its flexibility, it is particularly suitable for use in complex industrial installations. They are also known as “halogen-free electrical hose”.
DESIGN:
1 – Flexible copper conductor (class 5)
2 – Flexible cross-linked polyethylene insulation (XLPE)
3 – Flexible halogen-free flame-retardant polyolefin outer sheath, with low emission of smoke and corrosive gases in case of fire.
A FIRE SAFETY CABLE
TOXFREE® RZ1-K (AS) 0.6/1kV cable has excellent performance in the event of a fire: it does flame non-propagation, does fire non-propagation, is halogen-free, and has a low emission of smoke and corrosive gases. This is what is known as “Toxfree”, “halogen-free”, or LSZH (Low Smoke Zero Halogen) cable, with B2ca and Cca classification according to the European CPR Standard. It is a cable that must be installed in public places such as shopping centres, airports, schools, etc.
TECHNICAL CHARACTERISTICS OF TOXFREE® ZH RZ1-K CABLE
TOXFREE® RZ1-K 0.6/1kV cable is highly flexible and has good resistance to maximum and minimum temperatures, impact, chemical attack and ultraviolet rays. A flexible cable such as TOXFREE® RZ1-K offers greater ease of handling and laying, as well as better adaptability to winding routes when laying. In addition, its easy-stripping jacket can save up to 30% in labour costs.
Maximum fire performance CPR (B2ca, Cca)
Flexible cable
AD8 (submersion)
UV resistant
INSTALLATIONS WHERE THE USE OF TOXFREE® RZ1-K CABLE IS RECOMMENDED
TOXFREE® RZ1-K (AS) 0.6/1kV TOXFREE® cable, by Top Cable, is very versatile and is used in all types of installations:
- Underground power supply networks for outdoor lighting installations.
- Individual derivation.
- General power supply line.
- Indoor or receiving installations.
- Public premises.
- Underground networks for low voltage distribution.
- Electrical energy distribution networks and underground connections.
- Installations in premises with special characteristics.
It can be installed in the open air, in conduits and/or buried in indoor and outdoor installations, both in single and multi-conductor versions.
WHERE TO BUY TOXFREE® RZ1-K LSZH ELECTRIC CABLE?
To buy TOXFREE® RZ1-K halogen-free cable on 100 metre drums our sales conditions for Electrical Distributors and Wholesalers. We can also put you in touch with your nearest Top Cable distributor.
Some of the most common TOP CABLE TOXFREE® RZ1-K electrical cable cross-sections in immediate stock are as follows:
| Format | Code Top Cable Toxfree® RZ1-K (AS) | Conductor cross-section (mm2) |
| Cable RZ1-K (AS) in drums | 3201006.C | 1×6 |
| Cable RZ1-K (AS) in drums | 3201010 | 1×10 |
| Cable RZ1-K (AS) in drums | 3201240 | 1×240 |
| Cable RZ1-K (AS) in drums | 3202001MC | 2×1,5 |
| Cable RZ1-K (AS) in drums | 3202002MC | 2×2,5 |
| Cable RZ1-K (AS) in drums | 3203001MC | 3G1,5 |
| Cable RZ1-K (AS) in drums | 3203002MC | 3G2,5 |
| Cable RZ1-K (AS) in drums | 3204001MC | 4G1,5 |
| Cable RZ1-K (AS) in drums | 3204002MC | 4G2,5 |
| Cable RZ1-K (AS) in drums | 3205001MC | 5G1,5 |
| Cable RZ1-K (AS) in drums | 3205002MC | 5G2,5 |
| Cable RZ1-K (AS) in rolls of 100 metres | 3202001MCR100 | 2×1,5 |
| Cable RZ1-K (AS) in rolls of 100 metres | 3202002MCR100 | 2×2,5 |
| Cable RZ1-K (AS) in rolls of 100 metres | 3203001MCR100 | 3G1,5 |
| Cable RZ1-K (AS) in rolls of 100 metres | 3203002MCR100 | 3G2,5 |
| 4G1,5Cable RZ1-K (AS) in rolls of 100 metres | 3204001MCR100 | 4G1,5 |
| Ca4G2,5ble RZ1-K (AS) in rolls of 100 metres | 3204002MCR100 | 4G2,5 |
| Cable RZ1-K (AS) in rolls of 100 metres | 3205001MCR100 | 5G1,5 |
| Cable RZ1-K (AS) in rolls of 100 metres | 3205002MCR100 | 5G2,5 |
If you need to consult additional technical aspects of this cable, such as its maximum admissible current or voltage drop, please contact us.
TOXFREE® RZ1-K
LSZH power cable with maximum CPR fire protection
TOXFREE® ZH RZ1-K (AS) CABLE FAQS
What does RZ1-K stand for?
Each cable has a standardised designation. The letters and numbers refer to the cable outer sheath, other sheath, the conductor class, the rated voltage and the final composition of the cable. In the case of RZ1-K, the letters stand for:
Insulation:
R : Cross-linked polyethylene (XLPE).
Outer sheath:
Z1: Halogen Free polyolefin outer sheath.
Conductor:
-K : Cooper flexible conductor (class 5) for fixed installations.
Here you can find more information on the designation of electrical cables.
What is the difference between RV-K and RZ1-K cables?
Although both cables have the same flexible conductor (-K : Flexible copper class 5 for fixed installations) and insulation (R : Cross-linked polyethylene XLPE), the outer sheath varies: the RV-K cable has a PVC (Polyvinyl chloride) outer sheath, while the outer sheath of the RZ1-K cable is made of halogen-free thermoplastic polyolefin.
What is the difference between the RZ1-K (AS) and the RZ1-K (AS+) cable?
TOXFREE® RZ1-K (AS) is a High Safety cable: halogen-free, low smoke and corrosive gas emission, non-fire propagating.
TOXFREE® PLUS RZ1-K (AS+) is a High Safety fire resistant cable that has been specially designed to continue transmitting electrical energy during a fire.
What is the design of a TOXFREE® RZ1-K?
CABLE CONSTRUCTION : Construction standard IEC 60502-1 / UNE 21123-4.
Rated Voltage: 0,6/1kV
Conductor: Flexible copper (class 5)
Insulation: Flexible cross-linked polyethylene (XLPE)
Outer sheath: Flexible, halogen-free, flame-retardant polyolefin with low emission of smoke and corrosive gases in case of fire.
What are the fire characteristics of TOXFREE® RZ1-K cable and what is the reference standard?
Low emission of corrosive gases UNE-EN 60754-2 and IEC 60754-2.
Low smoke emission according to UNE-EN 61034 / IEC 61034: Light transmittance > 80%.
Halogen-free according to UNE-EN 60754-1 and IEC 60754-1.
Flame non-propagation according to UNE-EN 60332-1 and IEC 60332-1.
Fire non-propagation according to UNE-EN 60332-3 and IEC 60332-3.
Fire non-propagation according to EN 50399.
For more information on the fire tests to which electrical cables are subjected, see this video of the Top Cable channel on Youtube.
What other properties does TOXFREE® RZ1-K cable have?
TOXFREE® RZ1-K cable, by Top Cable, has excellent performance:
Maximum electrical performance at maximum and minimum temperatures, impact and chemical attack.

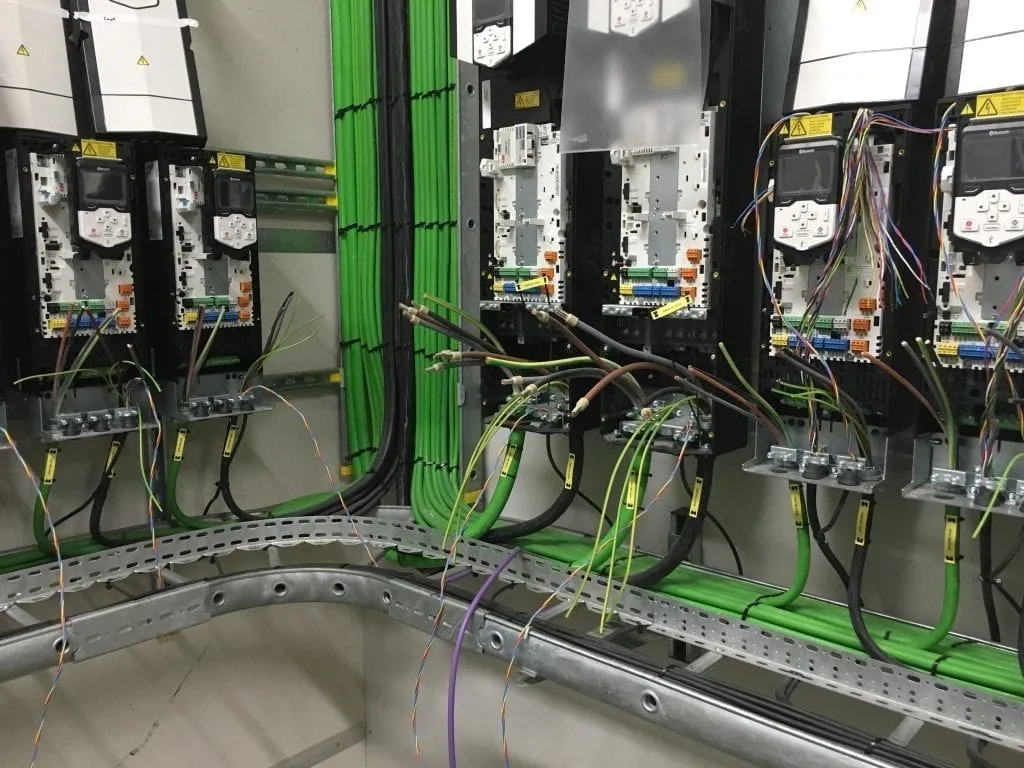

It is a flexible cable especially suitable for complex and difficult industrial installations.
Water performance: AD8 (submersible).
The cable outer sheath is UV resistant according to UNE 211605 weather test, gives the TOXFREE® RZ1-K cable excellent weather resistance, allowing it to be installed outdoors.
All these features guarantee a longer service life of the electrical installation.
Where can I find the TOXFREE® RZ1-K cable technical specification in PDF format?
Here is the PDF of the TOXFREE® RZ1-K cable summary technical specification. If you need to consult additional technical aspects of this cable, such as its maximum admissible current or voltage drop, please contact us.
What is the price of TOXFREE® ZH RZ1-K(AS) halogen-free cable?
At Top Cable you will get the highest quality cables, the best prices and the best service for drums and rolls of TOXFREE® ZH RZ1-K(AS) halogen-free electrical hose. Contact us.
What is the colour code of the TOXFREE® ZH RZ1-K(AS) cable?
The identification of the insulated conductors of TOXFREE® ZH RZ1-K cable, according to HD 308, is as follows:
1 x Natural
2 x Blue + Brown
3G Blue + Brown + Green / Yellow
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
4G Brown + Black + Grey + Green / Yellow
4 x Brown + Black + Grey + Blue
5G Brown + Black + Grey + Blue + Green / Yellow
6 or more Black numbered + Green / Yellow
What certifications does the TOXFREE® ZH RZ1-K(AS) cable meet. What is its DoP?
TOXFREE® ZH RZ1-K cable has been designed according to the IEC 60502-1 / UNE 21123-4 reference standard and complies with the European CPR (Construction Products Regulation) B2ca -s1a, d1, a1 or Cca -s1a, d1, a1 (according to section). You can consult the Declaration of Performance (DoP) in this link. In addition, TOXFREE® ZH RZ1-K cable is CE, RoHS, AENOR, SEC, RETIE and KEMA KEUR certified.
What does CPR B2ca s1a, d1, a1 mean? What does CPR Cca s1b d1 a1 mean? What is CPR in a cable?
Here you can read more about the European Construction Products Regulation (CPR) and its fire performance classification system for electrical cables.
The CPR classification of TOP CABLE TOXFREE® RZ1-K cable is B2ca-s1a,d1,a1 / Cca-s1a,d1,a1. In several European countries, the installation of CPR Cca-s1a,d1,a1 cables is mandatory in public places such as: hospitals, schools, museums, airports, bus stations and shops in general.
